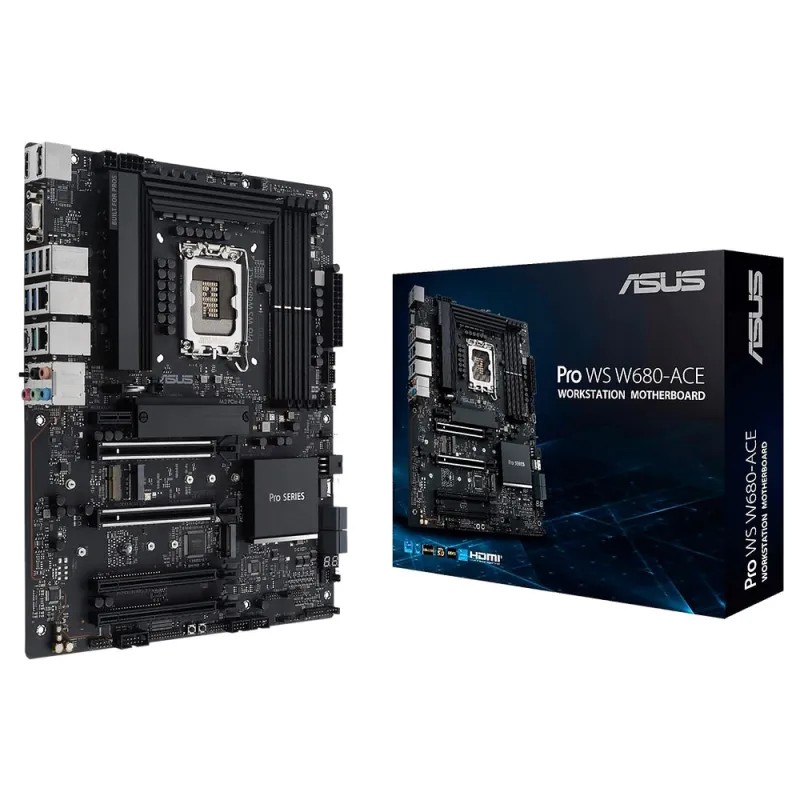

型號Pro WS W680-ACECPUIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

ChipsetIntel® W680 ChipsetMemory4 x DIMM, Max. 192GB, DDR5  ECC and Non-ECC Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Graphics1 x DisplayPort**

1 x HDMI® port***

1 x VGA port

Expansion SlotsIntel® Core™ Processors (14th &

13th & 12th Gen)*

- 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)

Intel® W680 Chipset

- 2 x PCIe 3.0 x16 slots (supports x4 mode)

- 1 x PCIe 3.0 x1 slot

StorageTotal supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*

Intel® Core™ Processors (14th & 13th

& 12th Gen)

- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® W680 Chipset**

- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

- 4 x SATA 6Gb/s ports

- 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)***

Ethernet2 x Intel® 2.5Gb Ethernet

ASUS LANGuardWireless & BluetoothM.2 slot only (Key E, CNVi & PCIe)*

USBRear USB (Total 8 ports)

- 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)

- 4 x USB 3.2 Gen 1 ports (4 x Type-A)

- 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

- 2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- Unique de-pop circuitBack Panel I/O Ports-2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)

-4 x USB 3.2 Gen 1 ports (4 x Type-A)

-2 x USB 2.0 ports (2 x Type-A)

-1 x DisplayPort

-1 x HDMI® port

-1 x VGA port

-2 x Intel® 2.5Gb Ethernet ports

-5 x Audio jacks

-1 x BIOS FlashbackTM buttonInternal I/O ConnectorsFan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin W_PUMP+ header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

1 x 6-pin PCIe Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

1 x SlimSAS port

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

1 x LPT header

1 x T-sensor

1 x Clear CMOS header

1 x COM Port header

1 x BMC Header

1 x Front Panel Audio header (AAFP)

1 x Start button

1 x Flexkey button

1 x SPI TPM header (14-1pin)

1 x  20-3 pin System Panel header with Chassis intrude function

1 x M.2 slot (Key E)

1 x LPT_P80 Switch

1 x Thunderbolt™  headerSpecial FeaturesASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD Guards

- LANGuard

- Overvoltage Protection

- SafeSlot

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-Code

- M.2 Q-Latch

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- CPU Socket lever protector

- SafeDIMM

- SafeSlot

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

Bespoke Motherboard Design & Business Focused Features

- 24/7 ReliabilitySoftware FeaturesIntel® vPro support

ASUS Exclusive

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

FlexKeyBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables

2 x SATA 6Gb/s cables

Miscellaneous

1 x Q-connector

1 x M.2 Rubber Packages

2 x Screw package for M.2 SSD

1 x Screw package for M.2 Key E

1 x I/O ShieldForm FactorATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
