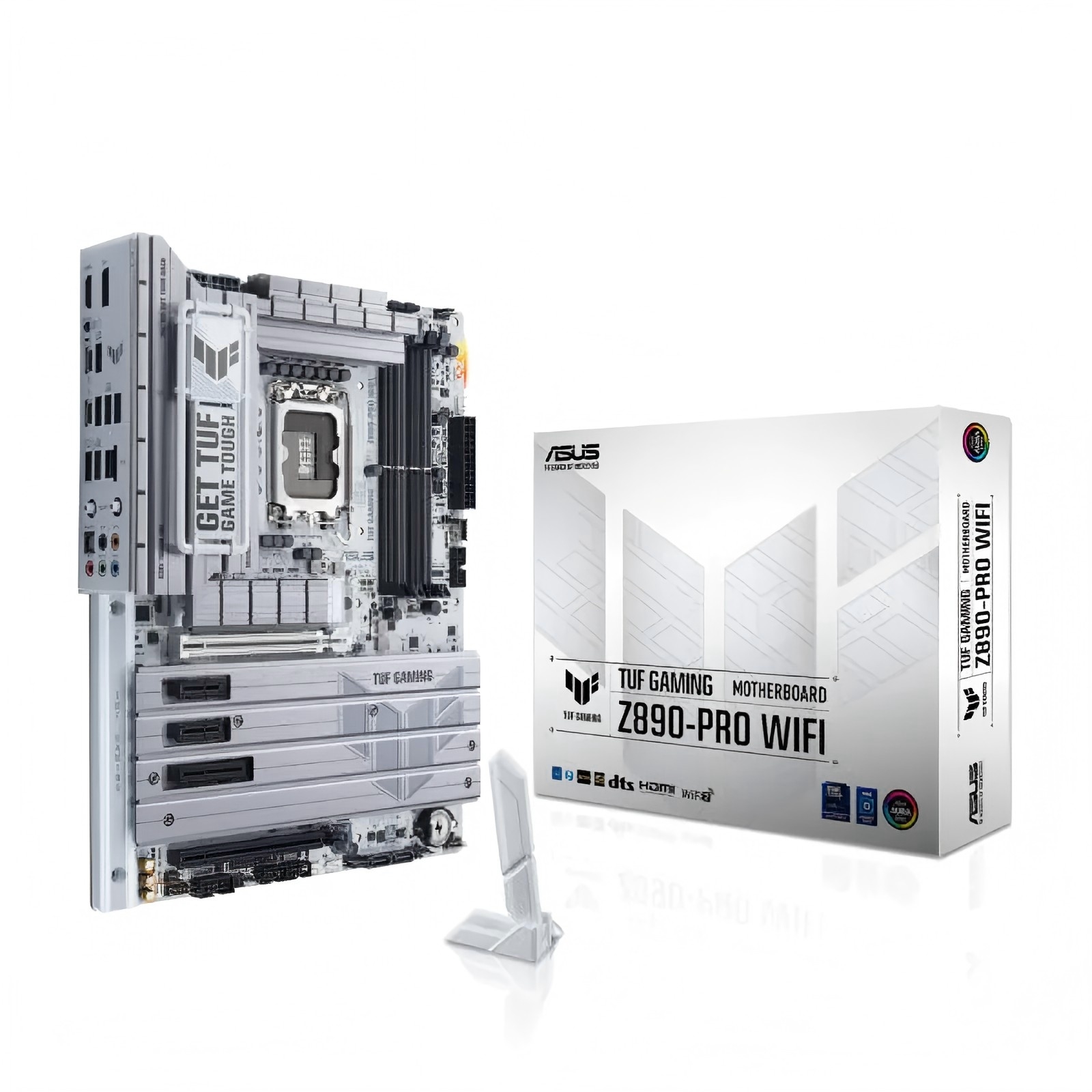

TUF GAMING Z890-PRO WIFI

TUF GAMING

Z890-PRO WIFIASUS TUF GAMING Z890-PRO WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

16+1+2+1 (80A), DrMOSPremium power stages with enlarged VRM heatsinks

AI IntelligenceAI Advisor, AI Overclocking, AI Cooling II & AI Networking II

NPU BoostThe BIOS feature overclocks the NPU with just one click

8600+ MT/s, AEMP III, DIMM FitEffortlessly apply to unleash performance

PCIe 5.0 for Graphics CardSupports next-gen graphics cards and is robust for handling data-heavy tasks

Empowering ConnectivityTwo Thunderbolt™ 4 & front USB 20Gbps Type-C® with PD fast charge support

DIY FriendlyQ-Release Slim, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, BIOS Flashback™ Button

Ultrafast NetworkingWiFi 7 with ASUS WiFi Q-Antenna

Aura SyncFull RGB lighting control

PerformanceCoolingGaming ImmersionConnectivityIntel® Core™ Ultra Processors (Series 2)Expansion Slots

» 1 x PCIe 5.0 x16 SafeSlot

» 1 x PCIe 4.0 x16 slot

  (supports x4 mode)

» 1 x PCIe 4.0 x4 slot

» 2 x PCIe 4.0 x1 slots16(80A) + 1(80A) + 2(80A) + 1(80A) Power Stages4 x DIMM

» DDR5

» Dual Channel

» AEMP III4 x M.2 Slots

» 1 x M.2 2242/2260/2280 PCIe 5.0 x4

» 1 x M.2 2280 PCIe 4.0 x4

» 1 x M.2 2280/22110 PCIe 4.0 x4

» 1 x M.2 2242/2260/2280 PCIe 4.0 x4

  & SATAVRM HeatsinksThree M.2 Heatsinks for Four M.2 SlotsCPU & CPU OPT Fan Headers & AIO Pump HeaderChipset Heatsink4 x Chassis Fan HeadersRealtek ALC1220P Audio Codec

Exclusive DTS Audio Processing

» Audio Shielding

» Rear Optical S/PDIF Out Port

» Premium Audio Capacitors

» Dedicated Audio PCB Layers

» TUF Gaming Audio Cover

» Unique De-pop CircuitAura Edge Lighting3 x Addressable Gen2 RGB HeadersDisplayPort

HDMI™BIOS FlashBack™ Button1 x USB 10Gbps

1 x Thunderbolt™ 43 x USB 10Gbps

1 x Thunderbolt™ 4Intel 2.5Gb Ethernet

2 x USB 10GbpsWiFi 71 x Optical S/PDIF Out

5 x Audio Jacks1 x USB 20Gbps Connector

(Supports USB Type-C®

with up to 30W PD Fast-Charge)1 x USB 5Gbps Header2 x Front USB 2.0 HeadersIntelligentComplete AI SolutionASUS AI Solutions – including AI Advisor, AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart assistance, one click overclocking, efficient cooling and new levels of ultrafast connectivity.AI AdvisorASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

* Availability of ASUS AI Advisor may vary by region.AI OverclockingMaximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling IIOptimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking IIOptimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

IntelligentOverclockingNPU BoostThe integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

* This feature only supports Intel K series processors

** The overclocking performance may vary depending on the CPU series and motherboard used.

*** Testing was conducted with an Intel Arrow Lake QS Q2HA Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).IntelligentIntelligent ControlUEFI BIOSThe UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

TurboV CoreTurboV Core is engineered for overclocking enthusiasts to elevate system capability with unprecedented simplicity. Accessed via ASUS DriverHub, TurboV Core provides intuitive configuration of CPU and DRAM parameters to unlock your computer's potential. No need to enter the BIOS, you can seamlessly modify settings directly from the Windows interface, and apply them right away without restart interruptions.ASUS DriverHubSimplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideXEnable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

Power SavingProvides easy-to-use configuration options for PC beginners and advanced features for veterans.

Armoury CrateCustomize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

PerformancePremium Power DesignStable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.16

VCCCORE

Power

(80A, DrMOS)1

VCCGT

Power

(80A, DrMOS)2

VCCSA

Power

(80A, DrMOS)1

VNNAON

Power

(80A, DrMOS)Eight Layered PCB designEnhanced stability and overclocking.

This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.ProCool Power ConnectorsProprietary 8+8 pin connectors improve PSU connection.

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.TUF ComponentsTUF chokes and capacitors offer rock-solid durability and stability.

TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.Digi+VRM ControlReal-time voltage control.

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.PerformanceMemory & StorageDRAM Overclocking PerformanceComprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.AEMP IIIASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.*

*Results may vary according to individual system specifications. Currently, only 2-DIMM configurations are supported. Results are based on a test with an Intel Core Ultra 9 285K processor and 2x16GB SK Hynix DDR5-6400 Clocked Unbuffered DIMM RAM, model HMCG78AHBCA326N.

8000(OC)AEMP III6400Intel DDR5 BasebandUP TO 25 %DIMM FitDIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability.

Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.M.2 PCIe 5.0 SupportThis motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.Bandwidth (Gbps)PCIe 5.0 x4

128PCIe 4.0 x4

64PCIe 3.0 x4

32*Actual transmission speed will be lower than theoretical maximum speed.CoolingCooler by DesignEnlarged VRM HeatsinksSmart Fan Protect4-Pin PWM/DC FanSuperb PCH HeatsinkMulti Temperature SourceAIO Pump Header
